RXG24 High Power Wirewound Resistor 50W 100 Ohm Brake Resistor Gold Aluminum Shell

Sichuan Qixing Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

RXG24 High Power Wirewound Resistor 50W 100 Ohm Brake Resistor Gold Aluminum Shell

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26

Rated Power : 50W

Certification : RoHS

Resistance : 100 ohm

Housing : Gold aluminum shell

type : Aluminum case resistor

model : RX24/RXG24

Rated power range : 5W~500W

Allowable resistance deviation : 5%

material : Wire wound

temperature coefficient : PTC

Temperature drift range : ≤300ppm/℃

Working temperature range : -55℃~+300℃

Power characteristics : high-power

shape : Flat sheet shape

frequency characteristic : UHF

Application : Brake load

Packaging Details : Carton packaging

Brand Name : BONENS

Model Number : RX24/RXG24

Place of Origin : Sichuan, China

Contact Now

product name

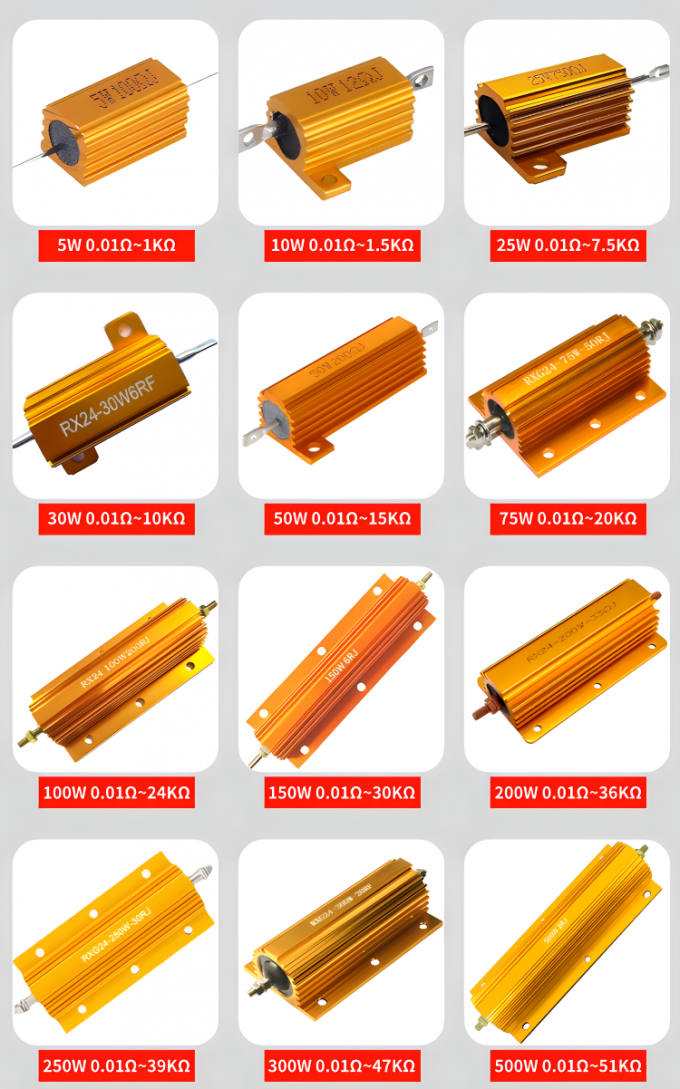

RXG24 High power wirewound resistor 75W 100W 200W 300W 500W Brake resistors
RXG24 High Power Wirewound Resistor 50W 100 Ohm Brake Resistor Gold Aluminum Shell
Products Description
The surface of the gold aluminum shell resistor has a heat dissipation groove, small size, large power, high temperature resistance, strong overload capacity, weather resistance, high precision, standard low inductive resistance, high stability, strong architecture, and its flexibility is good for multiple combination options, which is conducive to mechanical protection and easy installation and use.
RXG24 High Power Wirewound Resistor 50W 100 Ohm Brake Resistor Gold Aluminum Shell
Product Name
Golden Aluminum Resistors
Material
Aluminum metal
Features
1. Good heat dissipation / impact resistance 2. High power / long service life
3. Low noise, suitable for good circuit board insulation
4. Short time overload resistance
5. The resistance value does not change for a long time, and the heat resistance is excellent
6. The shell adopts wave linear curve for heat dissipation
Details Image
RXG24 High Power Wirewound Resistor 50W 100 Ohm Brake Resistor Gold Aluminum Shell
TYPE D I M E N S I O N S ( m m )
A1±1 A2± B±1 C±1 D±1.5 E±0.5 F±0.5 G±0.5 H±0.5 J±0.5 K±0.5 L±0.5 M±0.5
RX24-100W 35 35 37 98 130 27 48 26 3 11 14 5 4
RX24-150W 56 56 37 136 170 27 48 26 3 11 12 5 4
RX24-200W 63 63 37 155 185 27 48 26 3 11 14.5 5 4
RX24-200WL 35 35 58 92 125 46 73 45 5 20.5 12 6 6
RX24-250W 45 45 58 112 145 46 73 45 5 20.5 12 6 6
RX24-300W 52 52 58 128 160 46 73 45 5 20.5 12 6 6
RX24-500W 86 86 58 200 230 46 73 45 5 20.5 14 6 6
RX24-800W 100 100 58 250 282 46 73 45 5 20.5 25 6 6
RX24-1000W 123 123 58 300 332 46 73 45 5 20.5 27 6 6
